Sciemetric’s turnkey leak test stations enable manufacturers and testing facilities to implement leak test technology quickly and easily on their line. The turnkey stations can hold up to four leak test modules, handling any of the instruments’ supported leak test types including pressure decay leak test, mass flow test, vacuum test, and more.
Each Sciemetric turnkey leak test station harnesses the power of the Sentinel 3520 in an easy-to-install and easy-to-use station format, with all of the connections and components you will need to implement this technology on your line.
The Sentinel 3520 is designed to provide accurate, fast testing for a wide variety of applications. Equipped with high quality sensors, simple calibration processes, and PSV software configurable to a wide range of tests on your line, the Sentinel 3520 enables you to make fast pass/fail decisions and promote continuous improvement on your line.
Each Sciemetric turnkey leak test station comes ready to plug and play. With comprehensive setup instructions and user guides, simple calibration processes, and PSV software pre-configurable to a wide range of tests on your line, Sciemetric’s turnkey leak test stations can be implemented on your line the same day they arrive!
Of course, if you’d like us to help you with setup on your line, we’d be happy to do so. We offer a wide range of Integration and Commissioning Services to make leak testing easy and hassle-free.
Each turnkey leak test station comes equipped with all of the components, connections and parts you will need to connect it with your line and start testing. Each turnkey leak test station includes:
- sigPOD controller
- UPS
- Power supplies
- Cabling
- Air preparation
- Dual air filters
- Precision regulator(s)
- Accumulator tank
For a full list of connections and specifications, please refer to the respective product datasheets.
Sciemetric’s all-in-one leak test stations can be portable or fixed, depending on your needs. The 3670 can support up to four Sentinel 3520 pneumatic modules for optimal flexibility and testing, with custom leak test station development available to help meet your requirements. These flexible turnkey leak test stations can be used on your production line, manufacturing facility, in a testing lab or wherever you need to conduct a leak test.
The turnkey leak test stations can be customized to accommodate your requirements, including any geometric concerns (i.e., orientation) with the leak tester and the tested part. This can include remote mounting of the Sentinel 3520 units, pneumatic connection kits and more. For substantial changes, a custom leak test station can be developed.

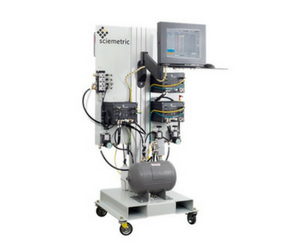

Model 3675 Leak Test Station
The Model 3675 Leak Test Station is a cost-effective turnkey station to deliver the speed and accuracy of Sciemetric leak testing for a wide range of applications. You can use up to three Sentinel 3520 leak test units controlled by a single sigPOD to conduct a range of leak tests with one station, including pressure decay, mass flow, vacuum, and more.
See the Model 3675 leak test datasheet for additional specifications.

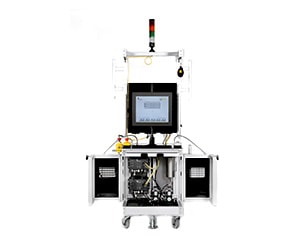

Model 3670 Leak Test Station
The Model 3670 Leak Test Station enables manufacturers to implement the innovative Sentinel 3520 leak test technology in a full turnkey solution. The 3670 can hold up to four Sentinel 3520 leak test modules, handling any of the leak test types supported by the 3520 Series including pressure decay, flow, vacuum, and more.
See the Model 3670 leak test datasheet for additional specifications.

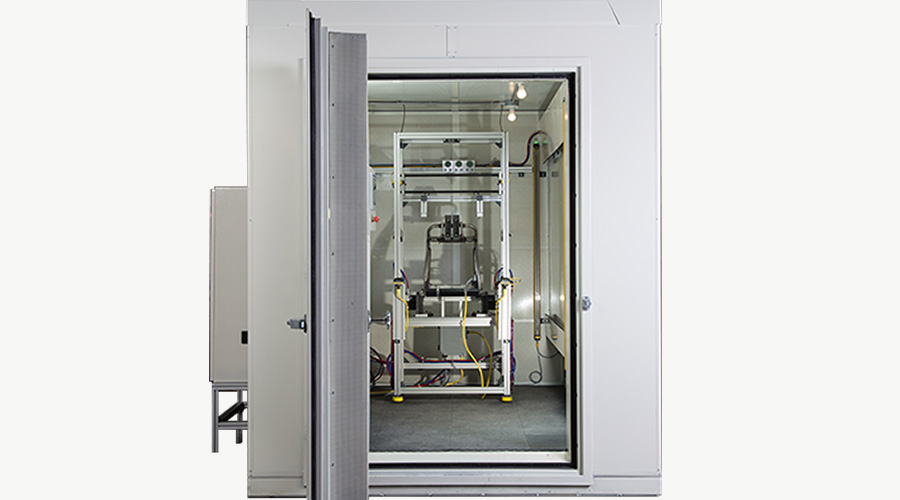

Custom Leak Test Stations
Together with our partners, Cincinnati Test Systems (CTS), we have the engineering and mechanical expertise in-house, and we also work with machine tool builders to make sure our custom stations meet plant specifications.
From selecting enclosures and connecting hoses and power supplies to pre-conditioning the factor air supply and interlocking with the assembly line controls, we take care of all the details to develop custom leak test stations to meet your needs.
Find the best turnkey leak test solution for your needs
Sciemetric makes it easy to find the right leak test solutions for your product line or testing facility. No matter the type of test you are running, Sciemetric will work with you to find the right solution for your needs.
With Sciemetric, you get access to a team of leak test professionals with the experience and expertise to optimize any leak test application. Contact us for a consultation with one of our leak test experts to learn more about how Sciemetric can help you improve your leak testing process.
